EKOM Compressor DK50 2V

The EKOM DK50 2V compressor delivers clean, oil-free compressed air. The low noise compact compressor delivers 130 litres / min at 7 bar and works within a pressure range of 6-8 or 8-10 bar.


Product Description

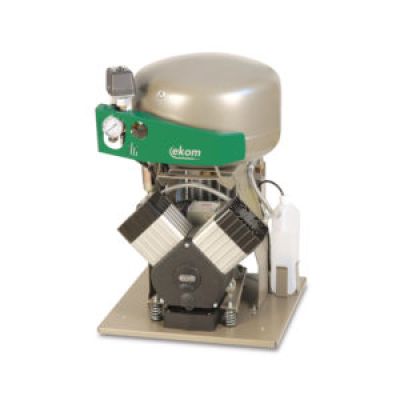

DK50 2V – Without soundproofing box

The DK50 2V is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level without the box is 71 dB(A). This unit is 100% duty and extremely easy to install.

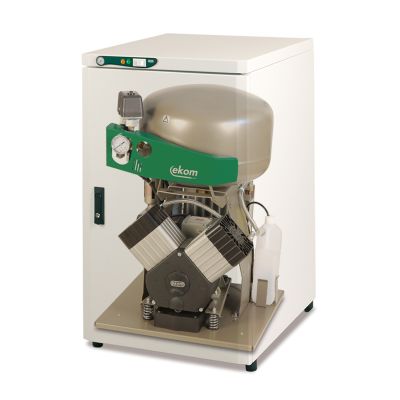

DK50 2V S – With soundproofing box

The DK50 2V S is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The decibel level with the box is 53 dB(A). This unit is 100% duty and extremely easy to install.

Perfect to be placed within the lab.

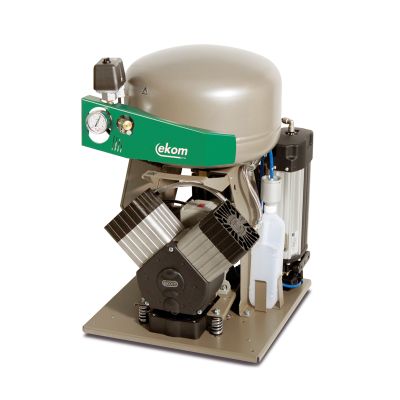

DK50 2V/M – With membrane (MD) or NPSL Dryer

The DK50- 2V/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point. The NPSL dryer will deliver a -40 atmospheric dew point. This unit is 100% duty and extremely easy to install

A dryer is always recommended.

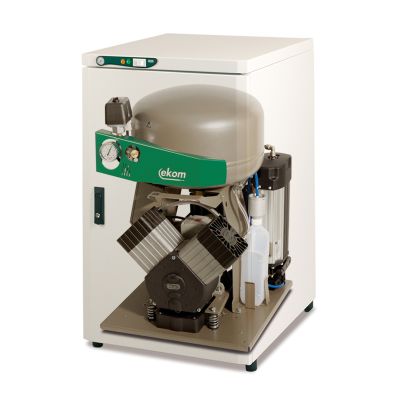

DK50 2V S/M – Soundproof box with membrane (MD) or NPSL dryer

The DK50- 2V S/M is fitted with an auto drain + bottle, MDR2 pressure switch, cooling fan and Siemens motor as standard. The membrane dryer will provide a -20 atmospheric dew point, whereas the NPSL dryer will deliver a -40 dew point. The soundproof cabinet with reduce the noise level to 53 dB(A). This unit is 100% duty and extremely easy to install.

Highly recommended, as you can position the compressor almost anywhere due to its low noise level.


Tech Specs

  • 125 L/min @ 7bar (without dryer)
  • 80 L/min @ 7 bar (with NPSL dryer) (-40 pressure dewpoint)
  • 25 L tank
  • Self-contained – Auto drain fitted as standard
  • Internally coated tank
  • ISO 8573.1 – Up to class 1 air quality

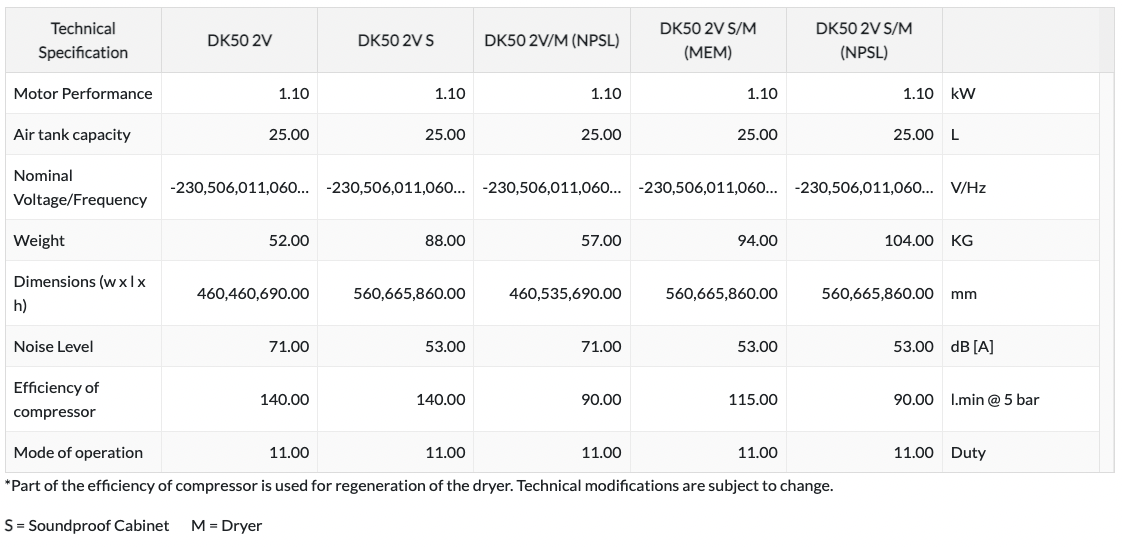

Specification Table


Technical Graphs

EKOM Manufacture quality silent oil free Air Compressors for the Dental, Medical, Laboratory and Industrial markets.
